3.5 alternator connector pinout diagram needed
Thread Starter
|
Junior Member
Joined: Jul 2025
Posts: 2
3.5 alternator connector pinout diagram needed
alternator connector shattered - i see 2 wires - red/white and green/white ....can anyone advise which positions they go on the alternator?
2007 3.5 engine
is IG in this case going to be the red/white wire?
2007 3.5 engine
is IG in this case going to be the red/white wire?
Last edited by anarky321; Jul 24, 2025 at 09:06 PM.
Super Moderator
Joined: Jul 2005
Posts: 12,392
From: Slightly off center
2007 Saturn Vue V6 FWD Alternator connector
2007 Saturn Vue V6 AWD Alternator connector

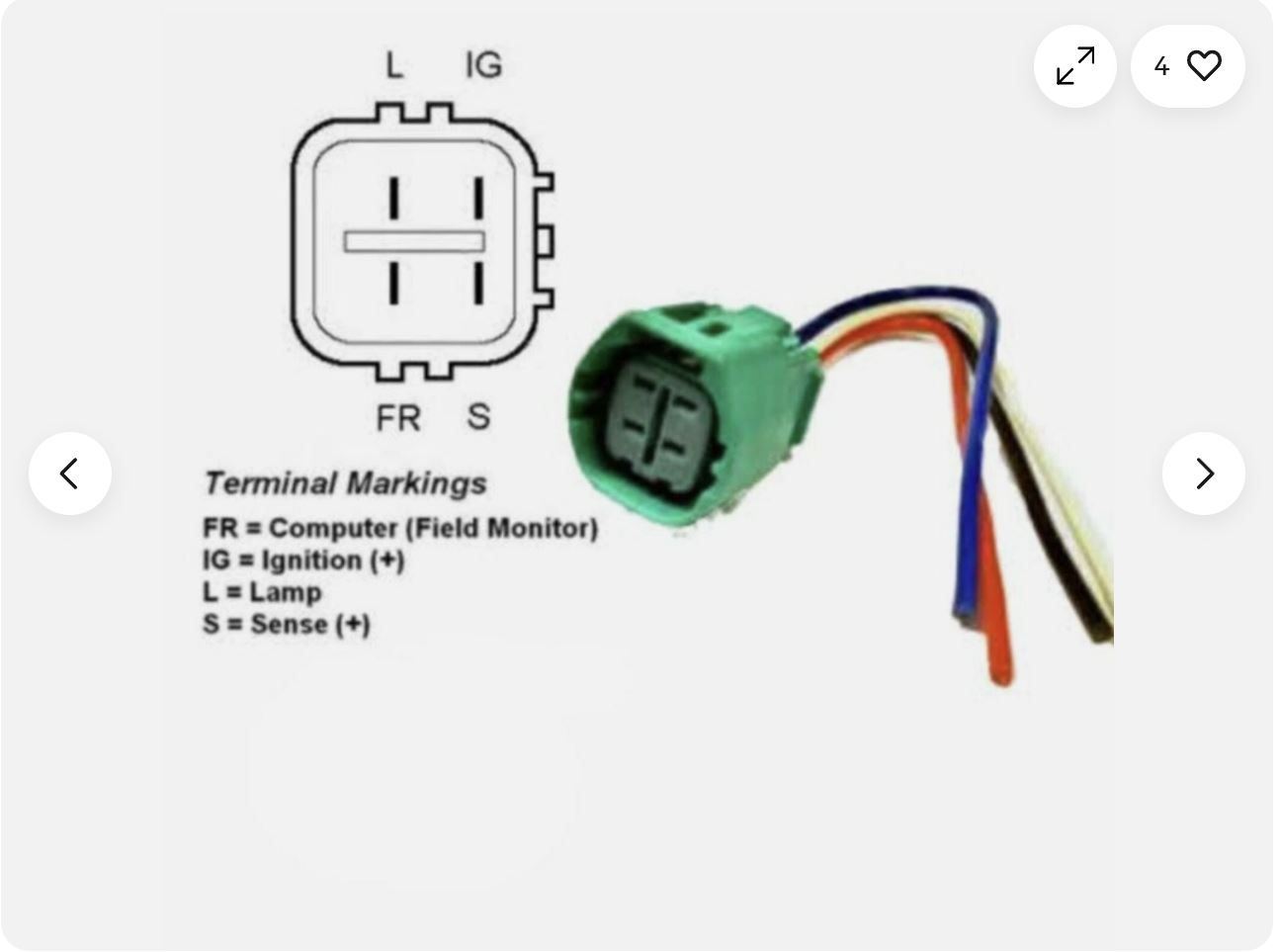

See above diagrams. They show only two of the four positions being used. Where is your connector picture from?
2007 Saturn Vue V6 AWD Alternator connector
See above diagrams. They show only two of the four positions being used. Where is your connector picture from?
Last edited by derf; Jul 25, 2025 at 12:34 AM.
Thread Starter
|
Junior Member
Joined: Jul 2025
Posts: 2
2007 Saturn Vue V6 FWD Alternator connector
2007 Saturn Vue V6 AWD Alternator connector
See above diagrams. They show only two of the four positions being used. Where is your connector picture from?
2007 Saturn Vue V6 AWD Alternator connector
See above diagrams. They show only two of the four positions being used. Where is your connector picture from?
you can even use the Acura one just don't use 2 of the wires
