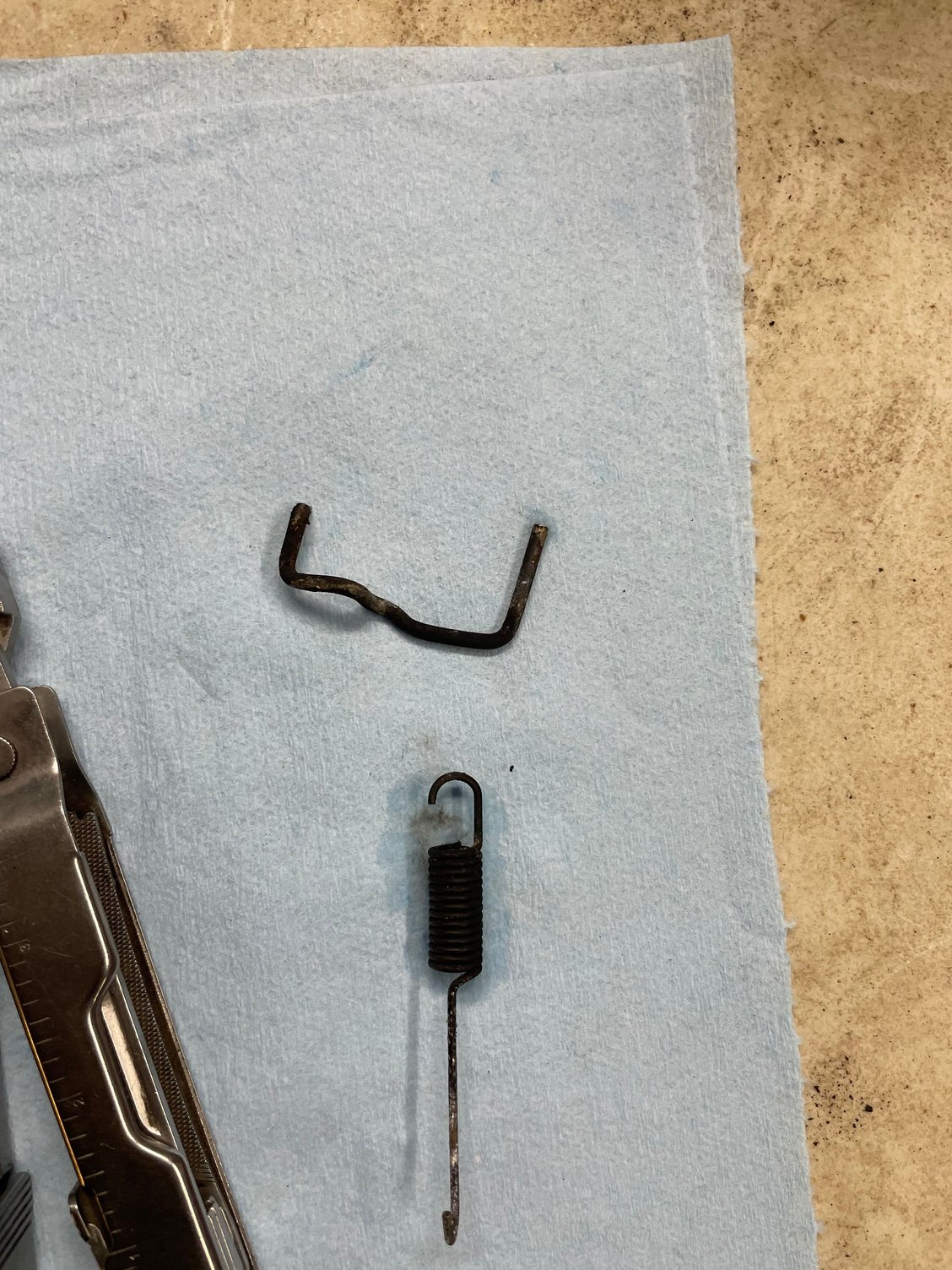

Remove the small link, it slides out easily.

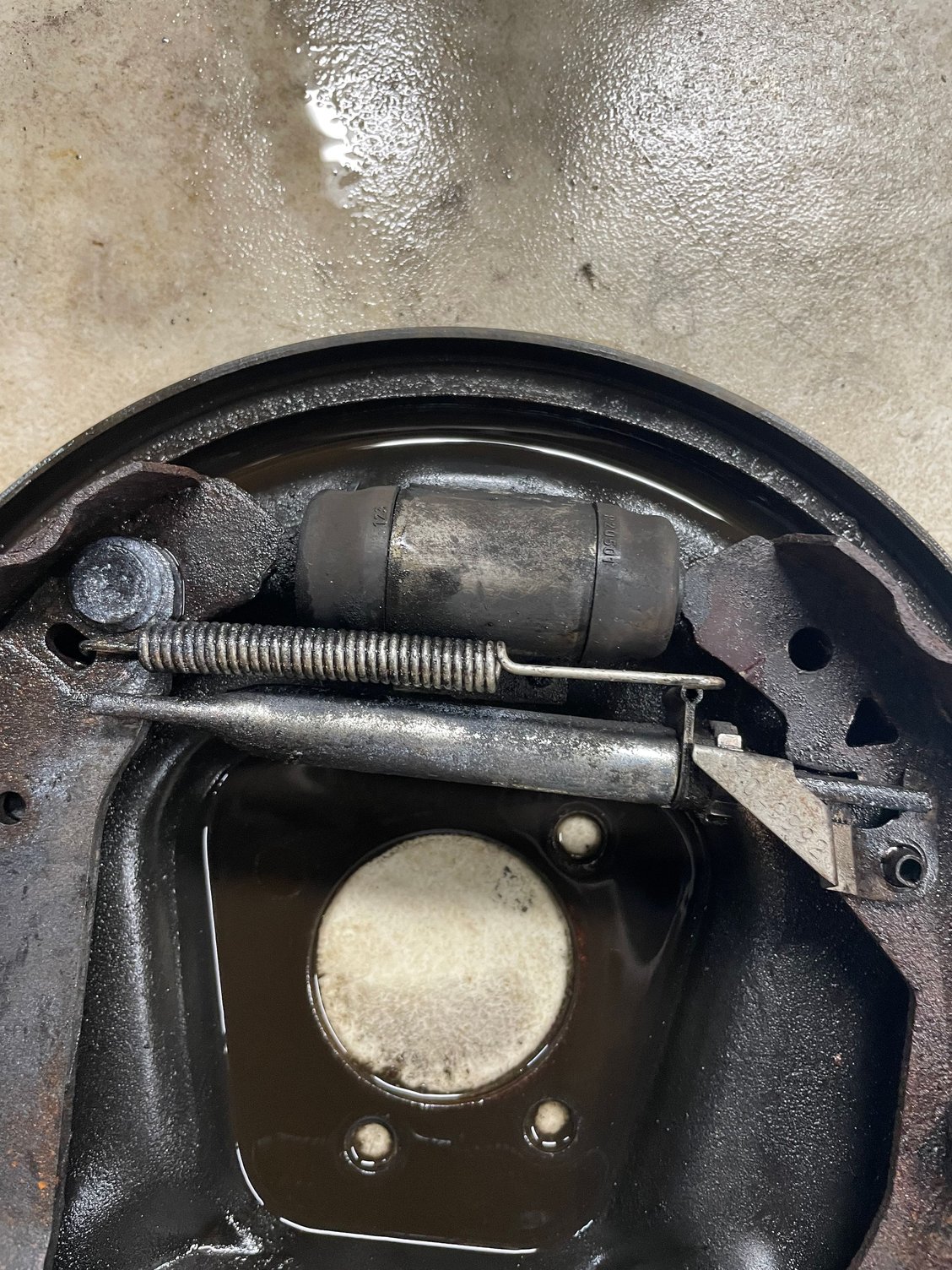

The part of the adjuster that turns the wheel lifts out now.




Now remove the main spring, it needs to be spun around in the trailing shoe to come out easily.

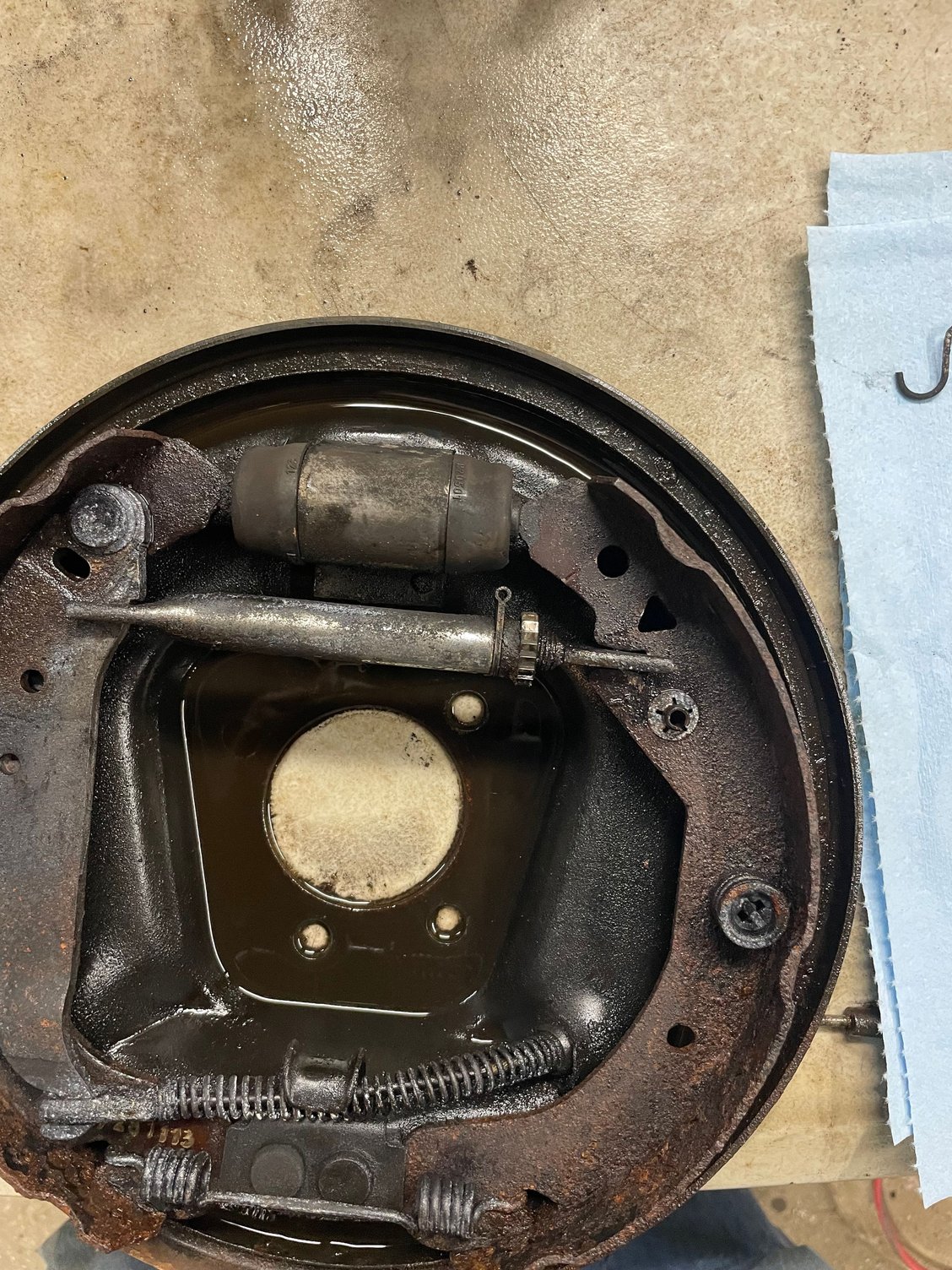

Pull the brake shoes away from the wheel cylinder and remove the adjuster.

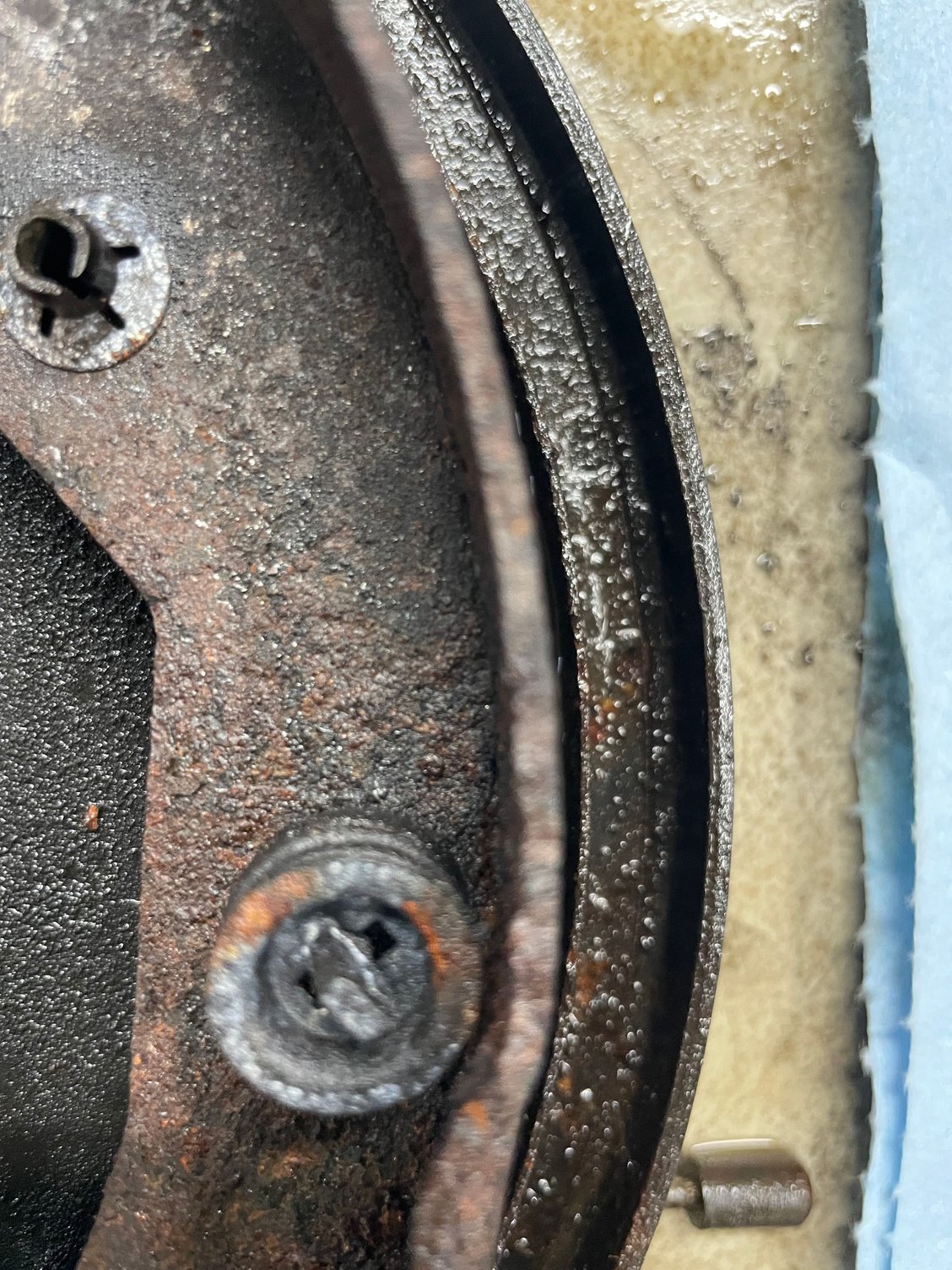

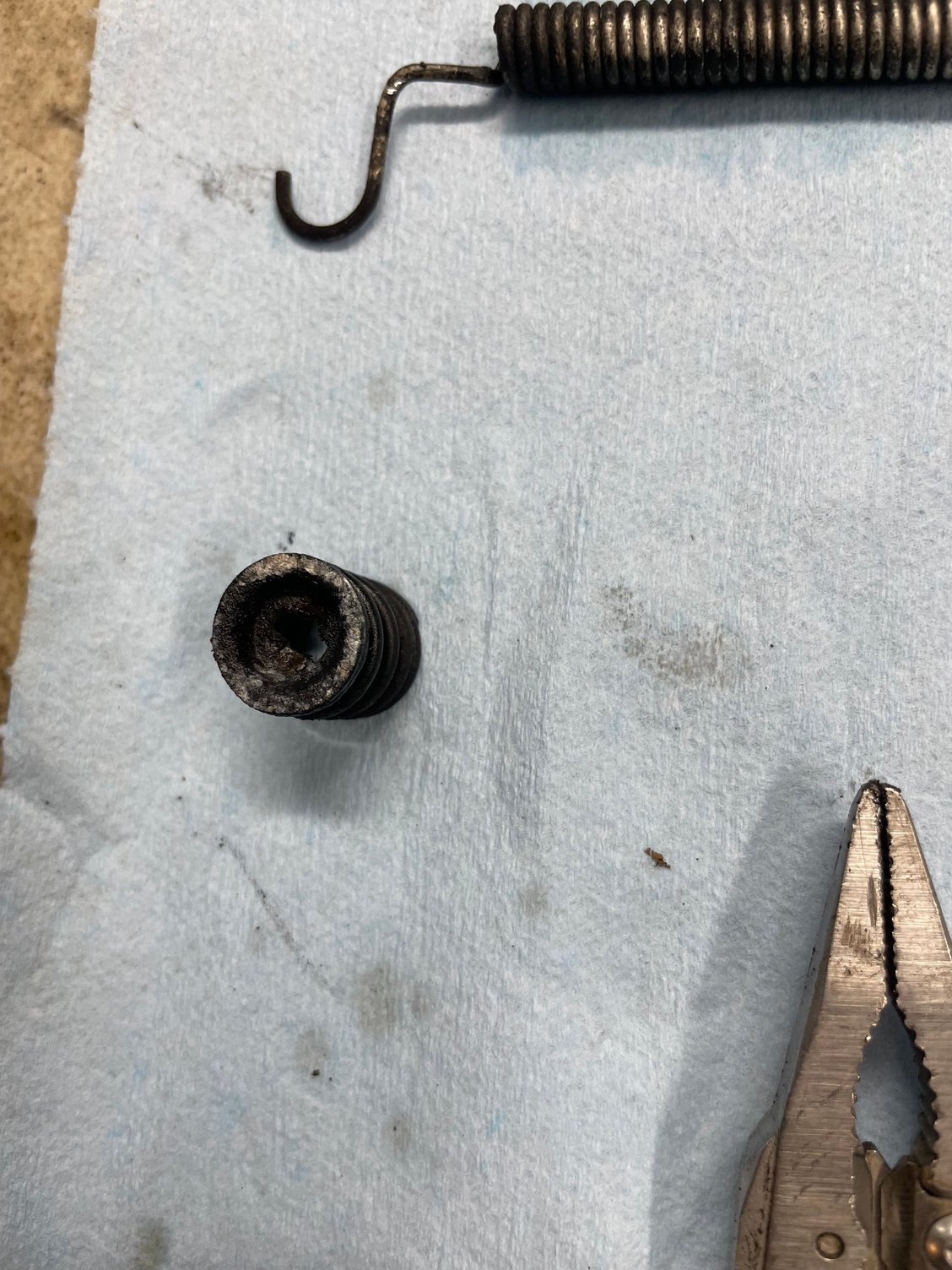

Remove the spring and cap holding the trailing shoe to the backing plate. Hold the pin on the back of the backing plate with your fingertip. Twist the pin with needle nose pliers. By moving the shoes apart releases some of the tension on the hold down springs. I chipped a front tooth 30 years ago when one got away from me.

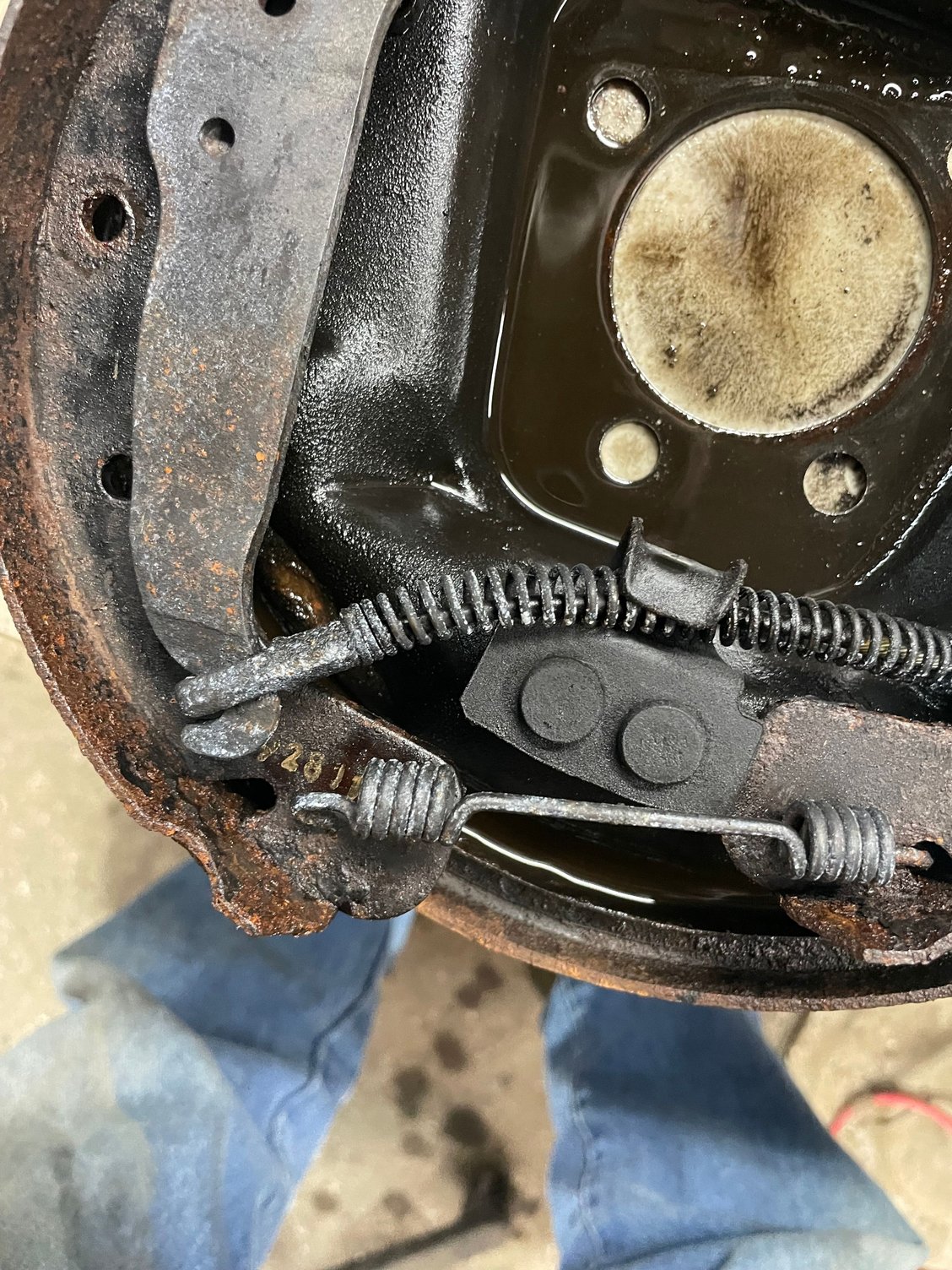

Remove the lower cross spring.

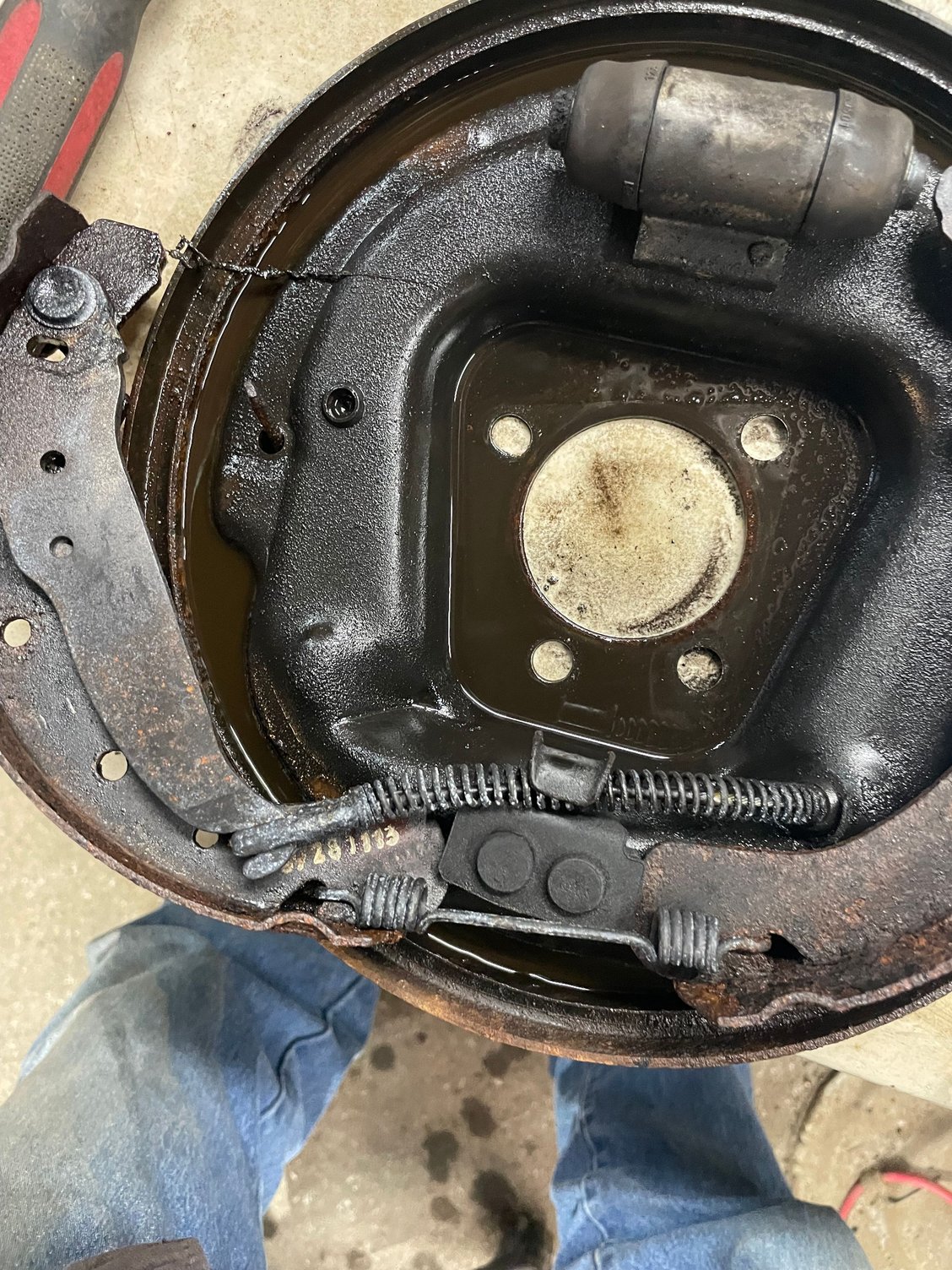

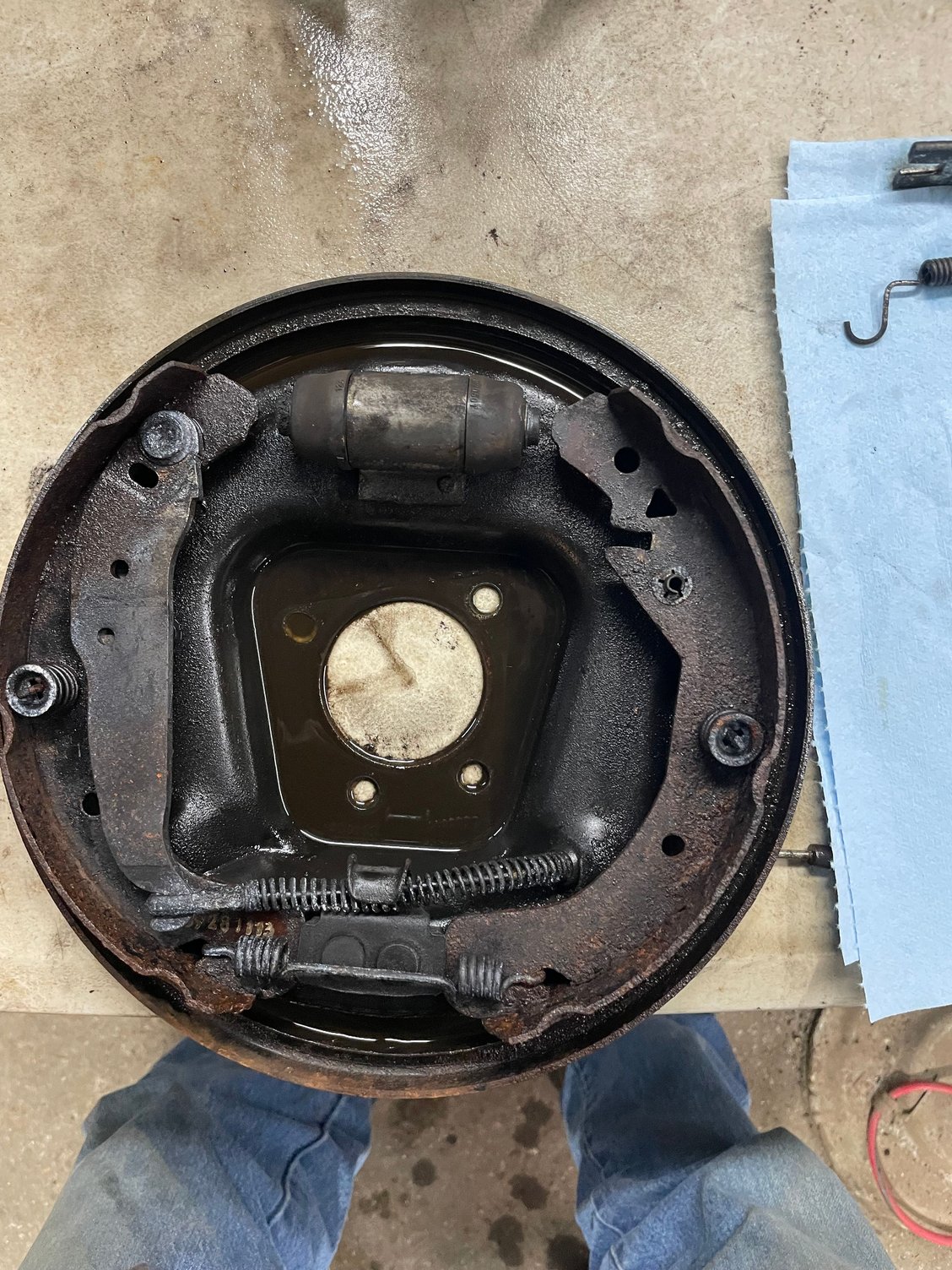

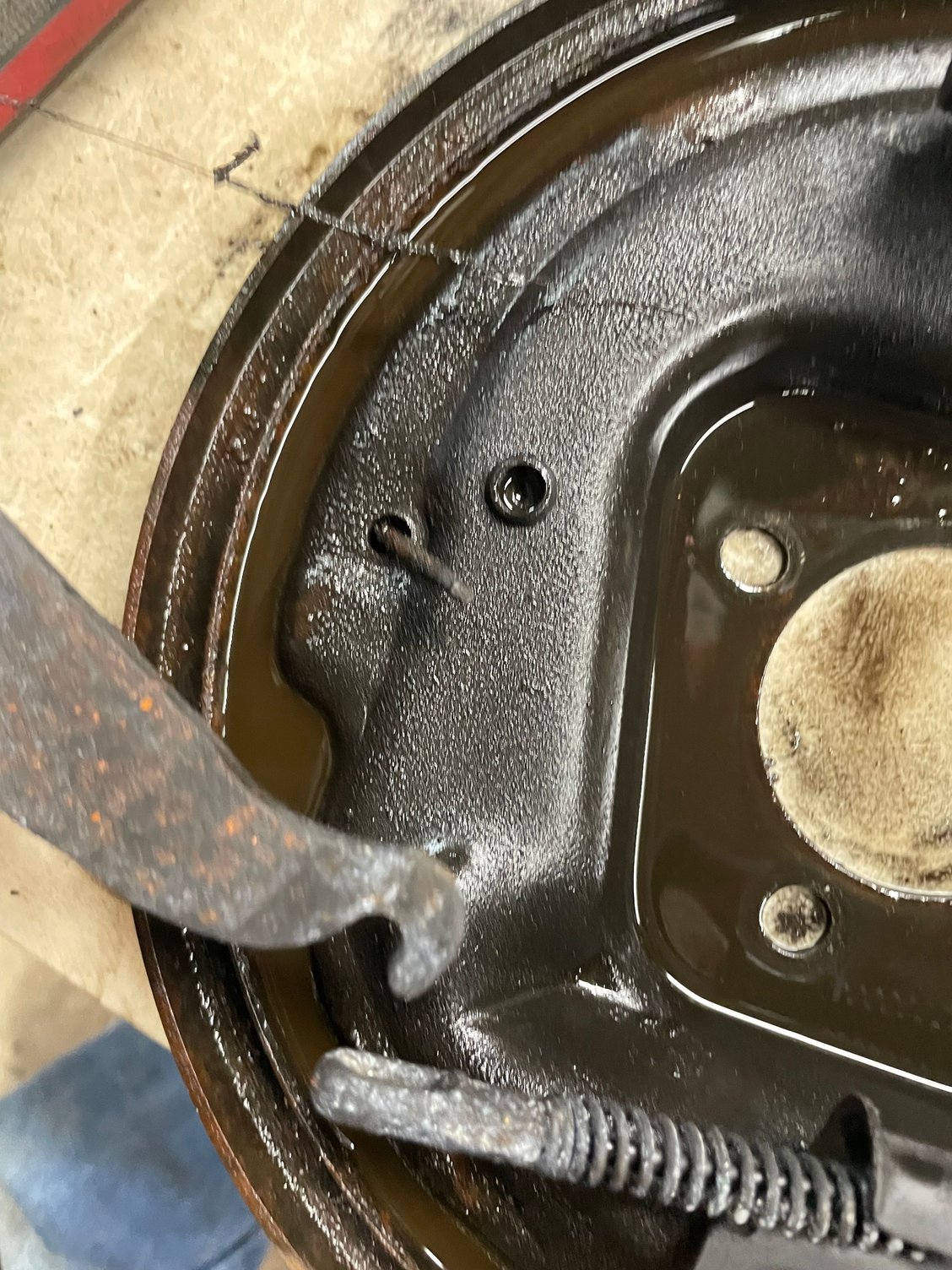

Slide the trailing shoe away and release the parking brake cable from the parking brake arm.






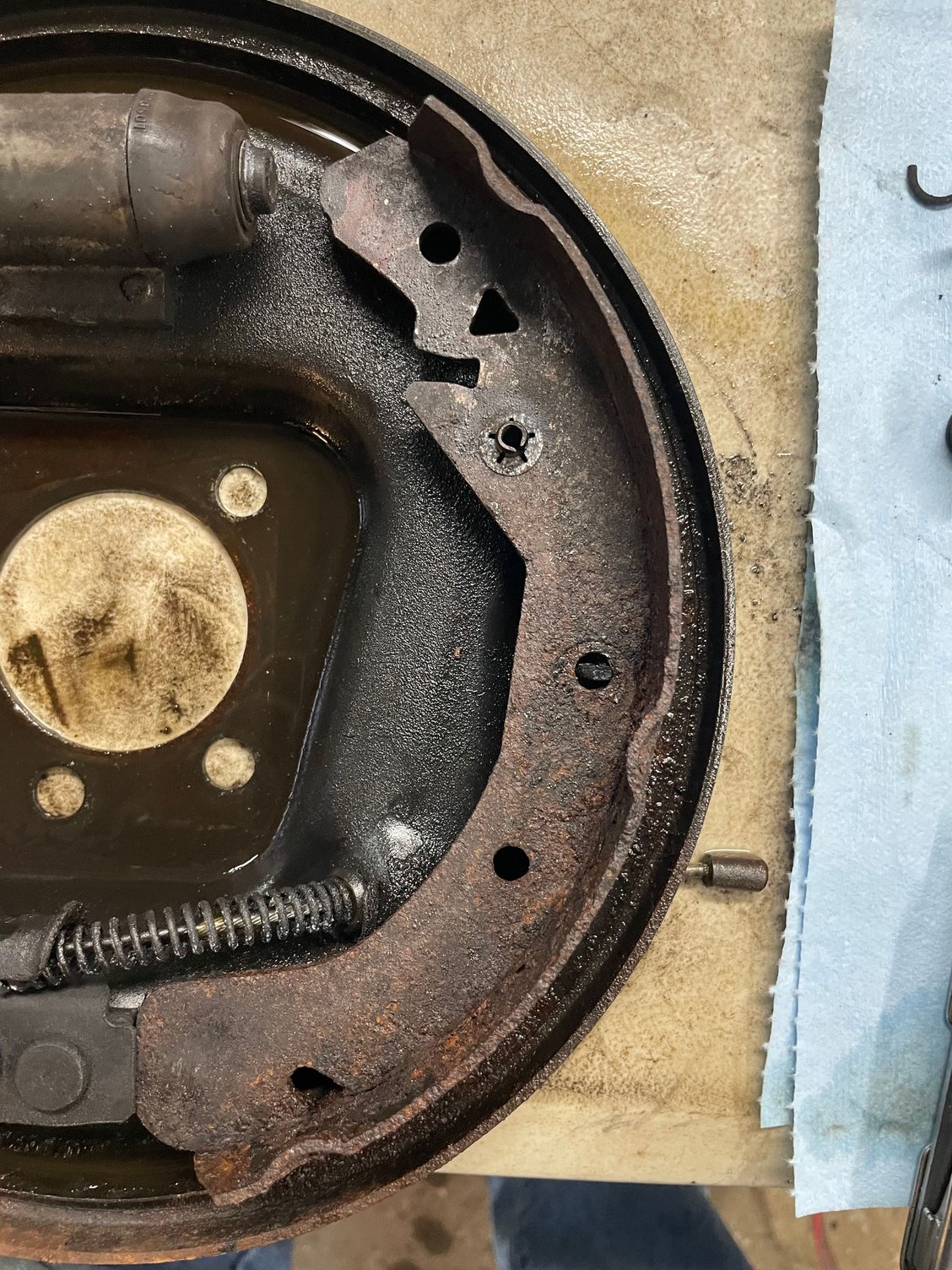

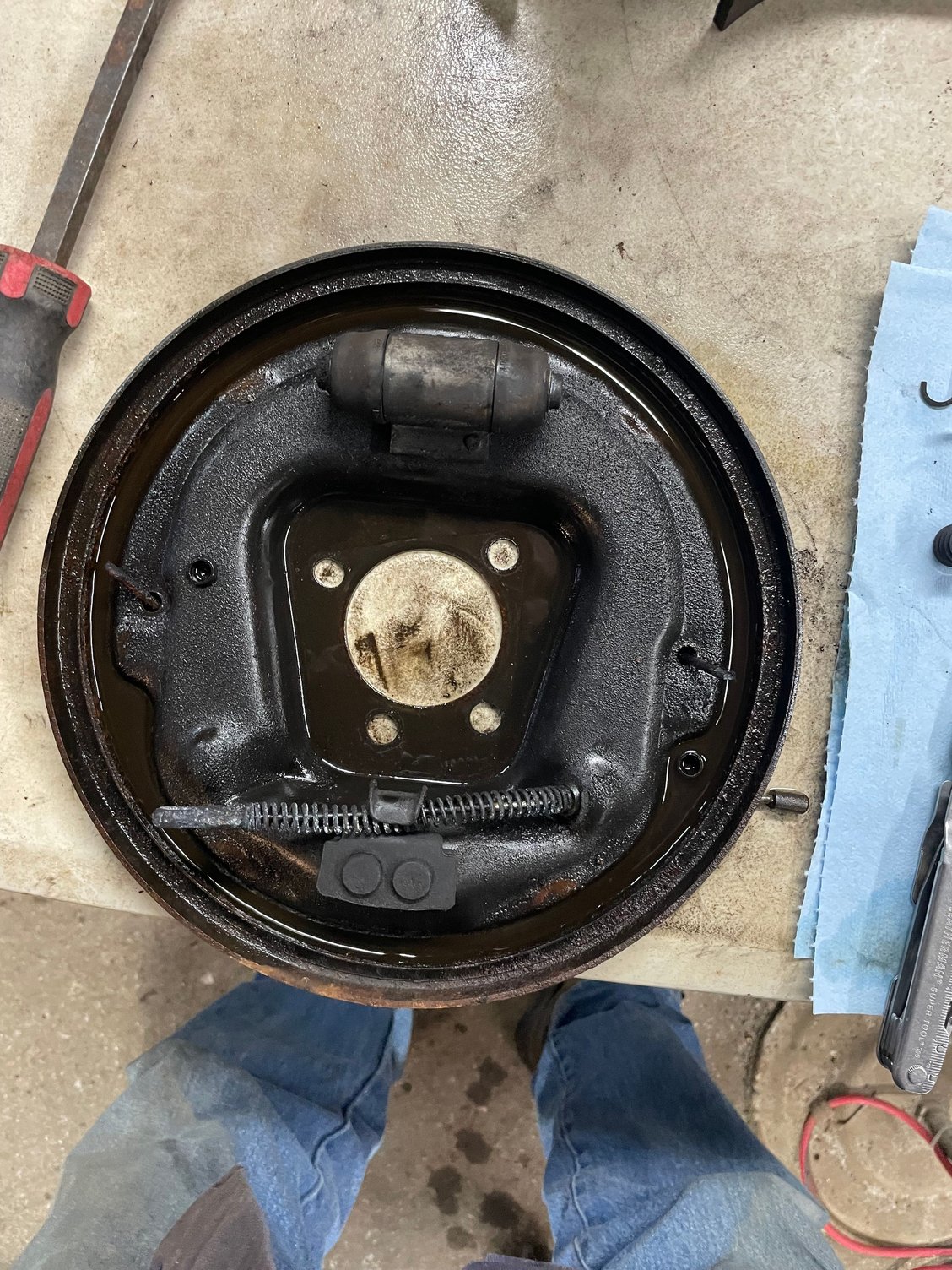

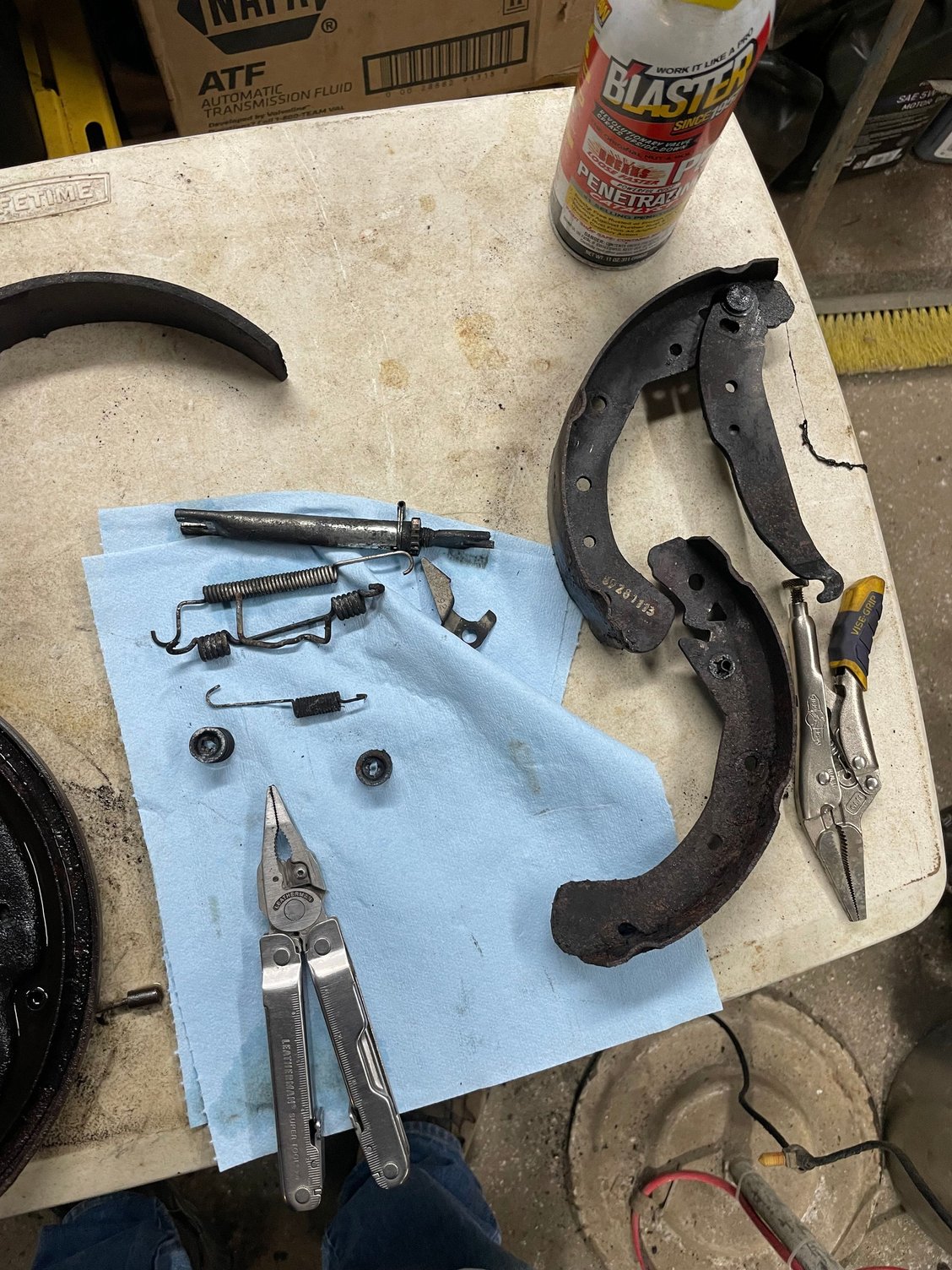

Remove the leading shoe hold down spring.
