@2002-2003 l200 Shift indicator lights wiring diagram

  #1
Old 09-10-2018, 11:28 AM
Junior Member
Thread Starter
Join Date: Sep 2018
Posts: 2
Default @2002-2003 l200 Shift indicator lights wiring diagram

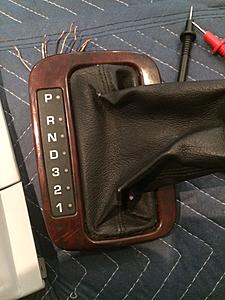

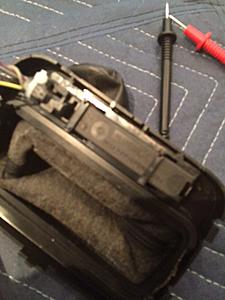

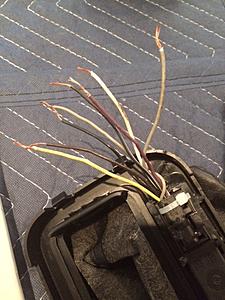

Would anyone have the wiring diagram for the shift indicator lights PRND123 on a L200 automatic console shifter. There are 8 wires on the plug that plugs into the light module. I am assuming that one is a ground and the other 7 go to each shift indicator light. I have tested wires with a meter for continunity but can not seem to figure out which is which is which. I am trying to use this in a console on a street rod I am building. Any help is appreciated.

Attached Thumbnails @2002-2003 l200 Shift indicator lights wiring diagram-img_3444.jpg   @2002-2003 l200 Shift indicator lights wiring diagram-img_3446.jpg   @2002-2003 l200 Shift indicator lights wiring diagram-img_3445.jpg
  #2
Old 09-11-2018, 10:45 PM
02 LW300's Avatar
Super Moderator
Join Date: Apr 2015
Location: Willamette Valley, Oregon
Posts: 1,279
Default

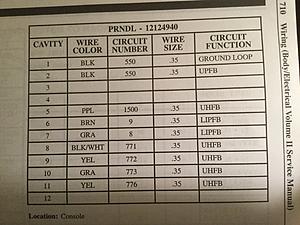

Iím working on this for you

Attached Thumbnails @2002-2003 l200 Shift indicator lights wiring diagram-f3292b93-afaa-4aa3-b626-ae66d7997512.jpeg
  #3
Old 09-11-2018, 11:47 PM
02 LW300's Avatar
Super Moderator
Join Date: Apr 2015
Location: Willamette Valley, Oregon
Posts: 1,279
Default

It is actually a module and I would really have to want to know how it works to spend more time. I would power it, ground it and power the lighting and play with the other 4 one at a time and see what lights up.

Attached Thumbnails @2002-2003 l200 Shift indicator lights wiring diagram-92d3f0ea-7b46-4ad8-a7b2-8e671a8f878a.jpeg   @2002-2003 l200 Shift indicator lights wiring diagram-15fdf5de-95e3-4698-bde2-9dad31fe1dd1.jpeg
  #4
Old 09-12-2018, 08:25 AM
Junior Member
Thread Starter
Join Date: Sep 2018
Posts: 2
Default Very Helpful

This helps a lot. By what I see here the black wire is the ground for the module and the other 7 wires would go to each of the 7 indicator lights. So if I use a battery charger as power source and ground the black wire each light should light up as I touch them to power. I have a sender that will hook to the trans linkage and will power each light as gear is selected, so I have that side covered to get power to the lights when this is finished. Just have to get the lights working. I will do some more testing and let you know how I make out. Thank you very much.
